Introduction#
The Solar Dynamics Observatory (SDO) [Pesnell et al., 2012] is a NASA satellite which has been continuously observing the Sun since 2010.
This library uses the sunpy package to download SDO images
and the aiapy package to align and prepare the
images to be ready for scientific analysis.
While this package uses Sunpy to download the data, it does not represent SDO
images as instances of sunpy.map.Map
it represents images using named_arrays.FunctionArray.
Installation#
This package is published to PyPI and can be installed using pip.
pip install solar-dynamics-observatory
API Reference#
Download and analyze SDO observations. |
Examples#

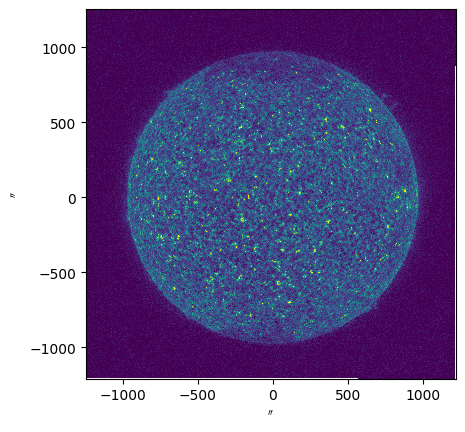

Download and display an AIA image
Important
Your email must be registered with JSOC
and be saved to the JSOC_EMAIL environment variable to use these
examples.
import matplotlib.pyplot as plt
import astropy.units as u
import astropy.visualization
import named_arrays as na
import sdo
# Download some images from JSOC and load into memory
images = sdo.aia.open("2019-09-30T00:00")
# Select one of the images to plot
index = {images.axis_time: 0, images.axis_wavelength: 0}
# Plot the image
with astropy.visualization.quantity_support():
fig, ax = plt.subplots()
na.plt.pcolormesh(
images.inputs.position[index],
C=images.outputs.value[index],
vmin=0,
vmax=images.outputs.value.percentile(99.9),
ax=ax,
)
ax.set_aspect("equal")
INFO: 2 URLs found for download. Full request totaling 14MB [sunpy.net.jsoc.jsoc]
Bibliography#
W. Dean Pesnell, B. J. Thompson, and P. C. Chamberlin. The Solar Dynamics Observatory (SDO). \solphys , 275(1-2):3–15, January 2012. doi:10.1007/s11207-011-9841-3.
